Industrial sewing machine needles SCHMETZ DBx1 (1738) LL for leather - 10 pcs.

SCHMETZ DBx1 LL, also known as 1738 (A) LL, is an industrial sewing machine needle for leather with a LL (Twist) point shape. The lens-shaped cross-section and the ~135° notch relative to the thread direction create without tearing the leather. Chrome coating reduces wear and overheating, ensuring long life during intensive use.

🧵 Best suited materials

• All types of natural and synthetic leather
• Leather + fabric (bags, lining combinations)
• Coated materials, soft PVC, films
• Thicker materials – belt, shoe, luggage parts

👞 Typical applications

• Shoe production and repair
• Manufacture of bags, belts, wallets, and suitcases
• Creating especially straight decorative seams on leather
• Upholstery/leather padding work

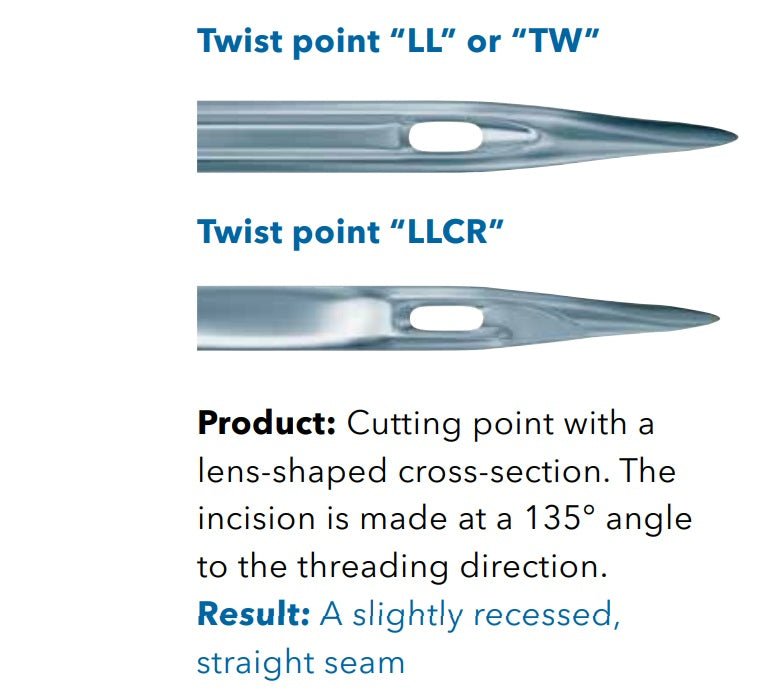

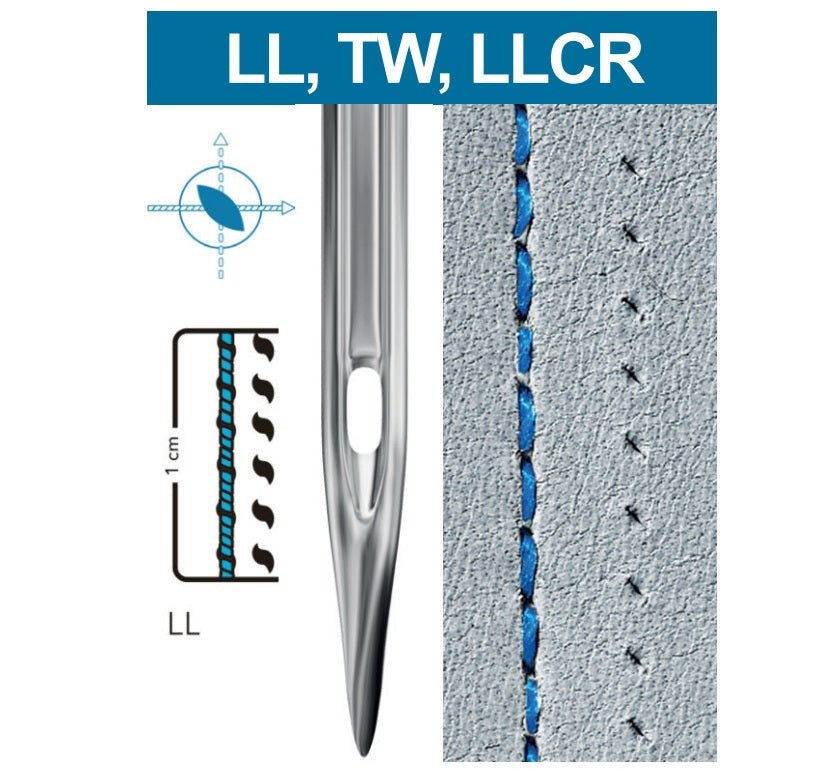

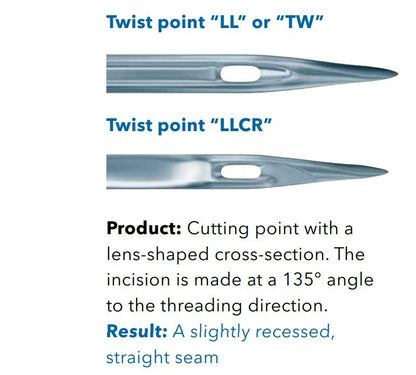

🎯 LL (Twist) point advantages

• Very straight seam with a clean cut in the leather
• Reduced hole "fraying" and material damage
• Stable stitch formation even with thicker threads

🔧 Compatibility

Suitable for industrial lockstitch machines designed for the DBX1, 16X231, 287 WH, 1738 (A) series of needles.

Needle systems (equivalents): DBX1 LL, 16X231 LL, 287 WH LL, 1738 (A) LL

📐 Technical data

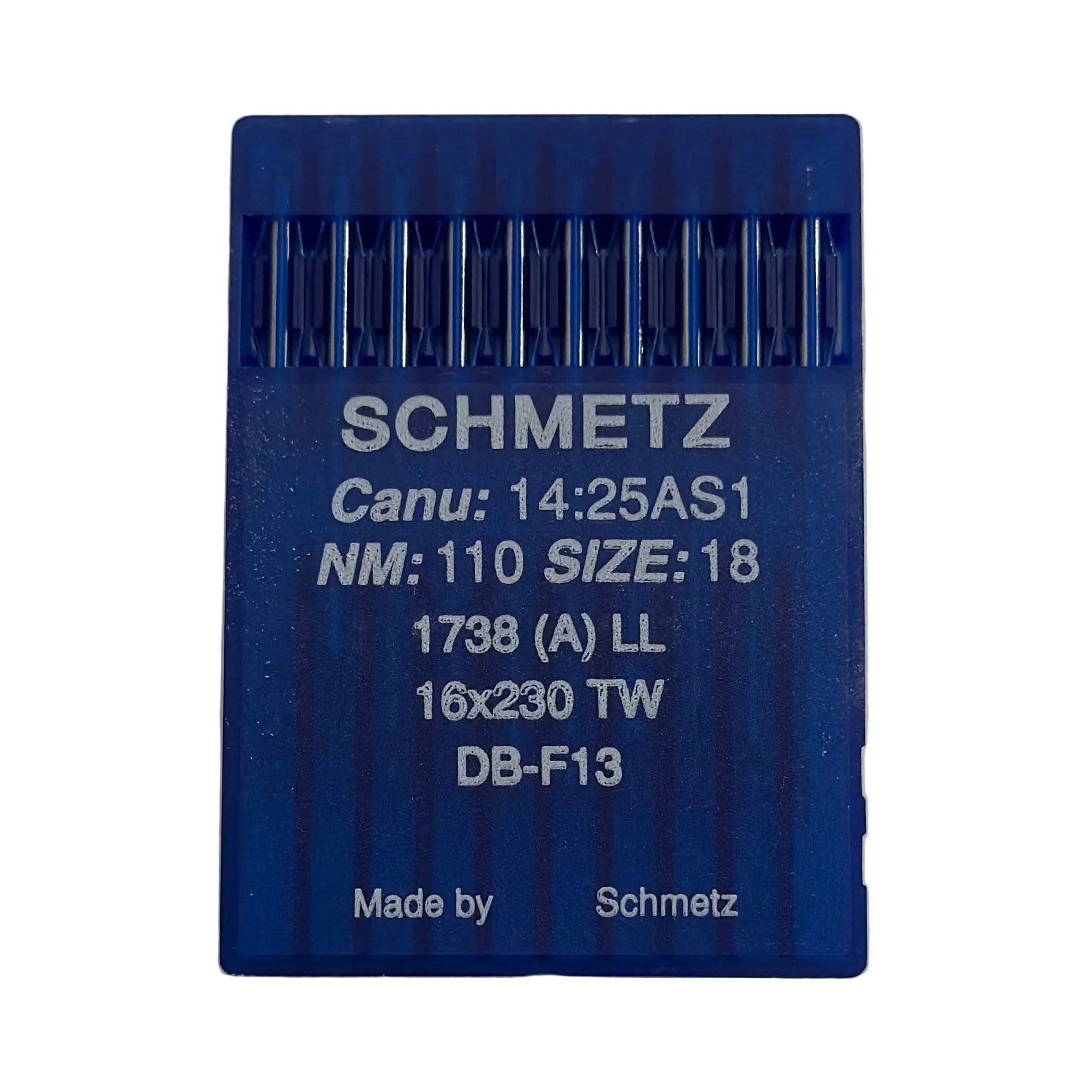

• CANU: 14:25AS1
• Point type: LL – Twist point
• Coating: Chrome
• Shank Ø: 1.62 mm
• Total length: 38.1 mm
• Length to eye: 33.9 mm
• Shank flattening: none (no flattening)
• Blade shape: straight
• Grooves: 1
• Stitch type: Lockstitch
• Packaging: 10 needles

🧶 Thread recommendations (for leather)

Choose thread thickness based on seam type and leather thickness; for thicker leather – use a larger needle and thicker thread.

• Decorative/topstitching: polyester or polyamide ~tex 75–150 (No. 20–8) with needle NM 120–160
• General seams: polyester ~tex 50–75 (No. 40–30) with needle NM 110–140
• Extra durable seams in high-wear areas of shoes (e.g., heel area) polyester ~tex 60–75 with needle NM 110–160

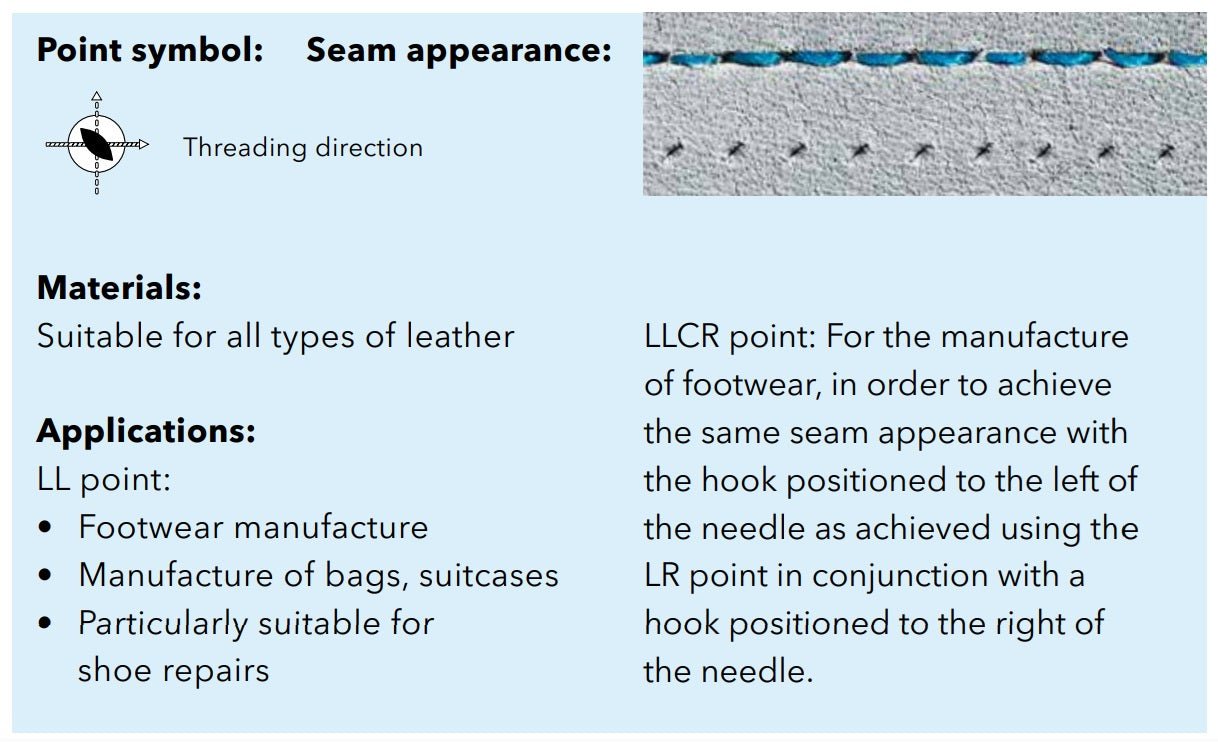

ℹ️ Useful note

If you need to achieve an identical seam appearance on machines with the hook positioned to the left of the needle, use the related point LLCR. On standard machines LL provides a very straight seam.
