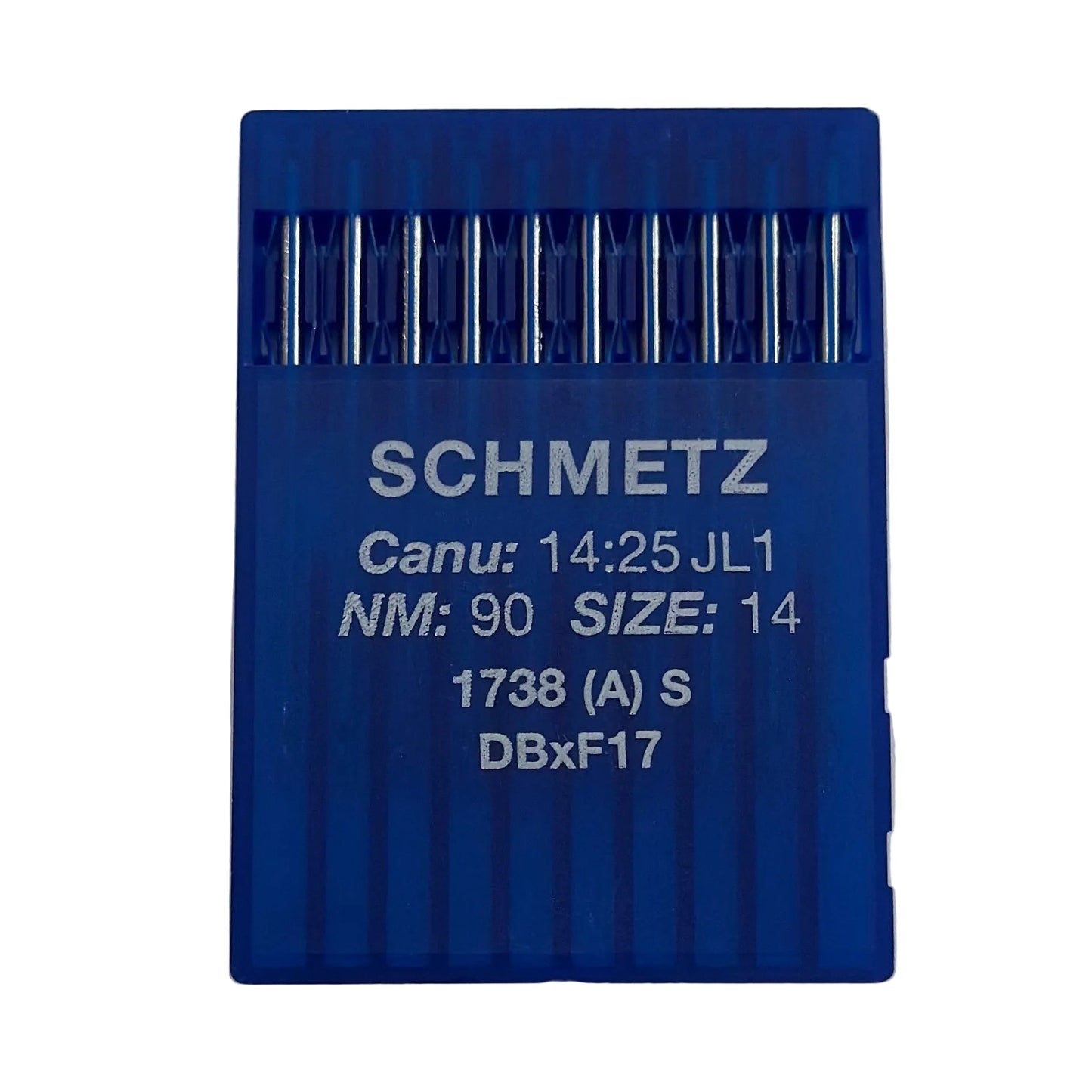

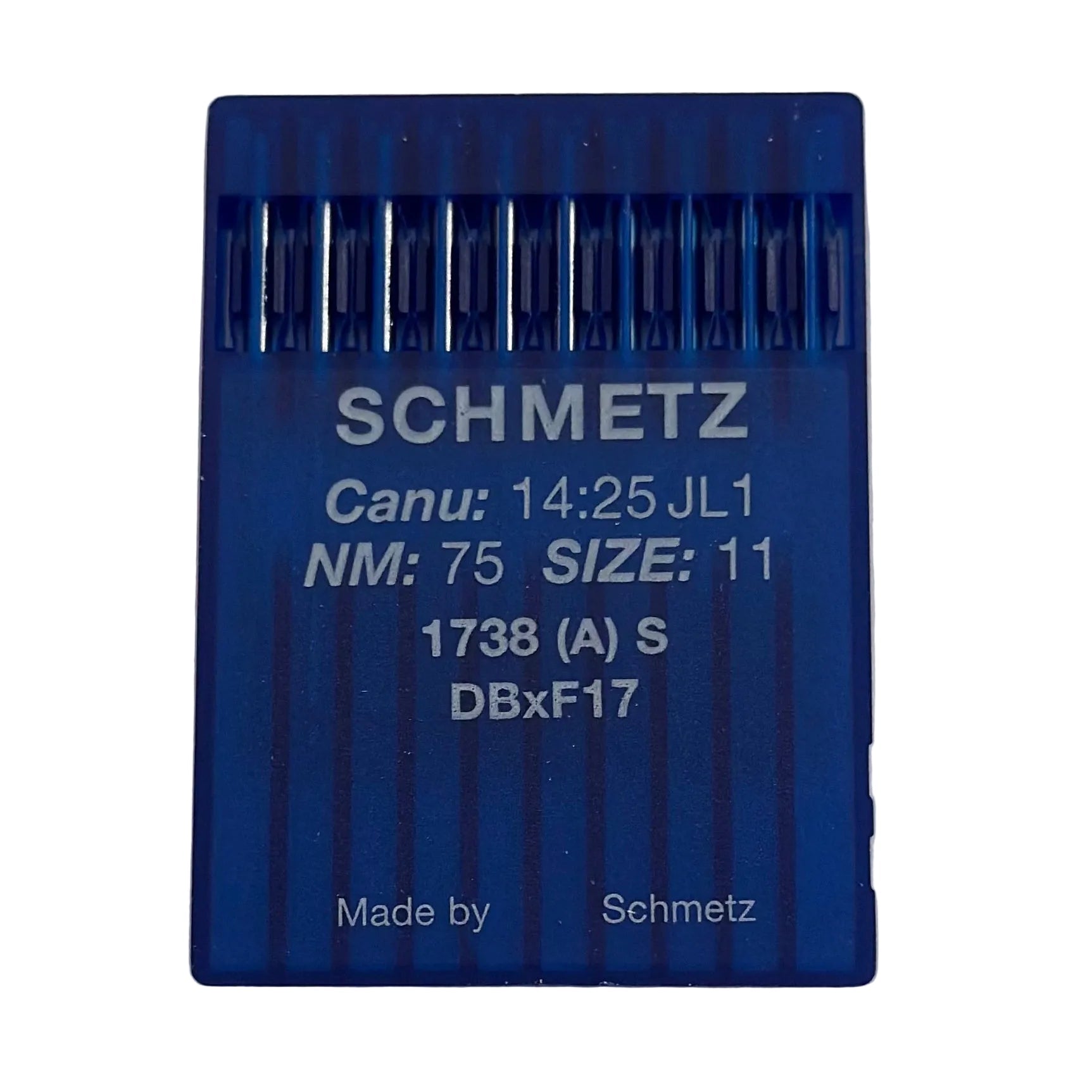

Industrial Sewing Machine Needles SCHMETZ DBx1 (1738) S for Leather - 10 pcs.

SCHMETZ DBx1 S are industrial sewing machine needles for leather with an S (Narrow Cross Point) tip. This needle point creates a very straight, clean stitch because the cut into the material is made perpendicular to the thread direction. Ideal for precise seams on leather without tearing the material. Chrome plating provides lower friction and higher durability during intensive use.

🧵 Suitable materials

• Genuine and synthetic leather
• Leather goods with multiple layers
• Textiles combined with leather (linings, bags, accessories)
• Car upholstery, bag components, belts

✨ Where the S needle excels

• Very straight, visually clean seams – suitable for both durability and design
• Bags, belts, wallets and other leather accessories
• Shoe and leather goods manufacturing
• Sewing car seats and other thicker materials

🎯 S (Narrow Cross Point) advantages

• Very straight stitch line – no lateral slant
• Clean cut – does not pull or tear the leather
• Great for coarse, pronounced decorative stitches
• Stable stitch even in thicker materials

🧶 Recommended threads for leather

Choose the needle size and thread thickness according to the material’s thickness.

🔧 Compatibility

Fits industrial lockstitch machines that use DBX1, 16X231, 287 WH, 1738 (A), DBxF17 series needles.

Needle systems (equivalents): DBX1 S, 16X231 S, 287 WH S, 1738 (A) S, DBxF17

📐 Technical data

• CANU: 20:05JL1
• Point type: S – Narrow Cross Point (very straight cut)
• Coating: Chrome
• Shank Ø: 1.62 mm
• Overall length: 37.7 mm
• Length to eye: 33.9 mm
• Shank flattening: none (no flattening)
• Blade shape: straight
• Number of grooves: 1
• Stitch type: Lockstitch
• Packaging: 10 needles

ℹ️ Note

The visual appearance of the stitch in the pictures refers to machines with the thread tensioned from the side. On machines with front thread tensioning the stitch effect may differ slightly. If a slanted stitch is needed, choose an LR or LL tip.

✅ Why these needles?

• Perfect for straight, pronounced seams on leather
• Very durable, suitable for prolonged industrial sewing
• Compatible with all popular DBX1, 16X231, 287 WH, 1738 (A), DBxF17 series lockstitch machines
